Tec4Lin stands 'Technology for Linear Motion'.

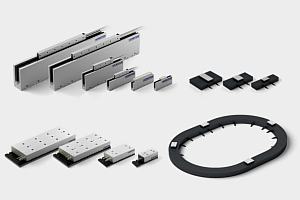

Tec4Lin is a set of tubular, ironless OEM linear motor elements, which makes a wide range of applications possible with this technology. Because there is a set in every frame size, the elements are perfectly suited for OEM applications with series and special machinery. The motor elements with low-voltage technology are available with an operating volatge of up to 400 VAC.

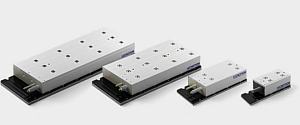

Iron Core Linear Motor Elements

Characteristics:

• flat motor elements für OEM applications
• very high accelerations, due to low masses
  & high peak forces
• peak force up to 6.750 N
• max. speed 10 m/s
• unlimited stroke, magnets mountable as needed
• cooling through natural convection or liquid cooling
• 3-phase winding suitable for 230 VAC
  up to 400 VAC supply
• usable with all major servo controllers
• CSA certified

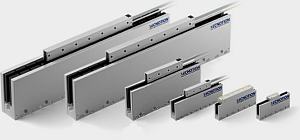

Ironless Linear Motor Elements

Characteristics:

• U-shaped motor elements for OEM applications
• 3-phase winding suitable for 60 VDC
  up to 300 VDC DC bus
• very high accelerations, due to low masses
  & high peak forces
• peakforce 36 N up to 4.200 N
• unlimited stroke, magnets mountable as needed
• cooling through natural convection or liquid cooling
• max. speed 18 m/s
• usable with all major controllers

Ironcore Linear Motor Elements

Characteristics:

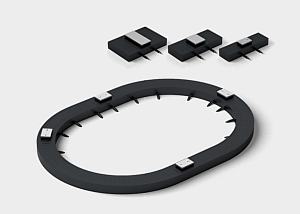

• for ClosedGuide systems
• motor elements straight or curved for
  special OEM applications
• peak force 60 N up to 480 N
• max. speed 12 m/s
• 3-phase winding suitable for 300 VDC supply
• very high accelerations, due to low masses
  & high peakforces
• unlimited stroke, active parts mountable as needed

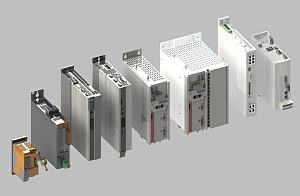

Tec4Lin Positioning Controller

Tec4Lin linear motor elements can be applied on positioning controllers, regardless of the manufacturer. All motor elements are industrial standards and their technical documents are disclosed for the application.
