ForTorque® Swivelling-Rotary Modules

Overview

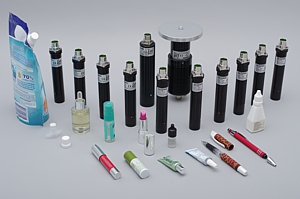

ForTorque® stands for super-thin, high-dynamic swivelling-rotary modules with large torques, very compact dimensions and little weight.

ForTorque® is a construction kit consisting of servo-electric swivelling-rotary modules, that are available in three sizes with diameters of 25, 35 & 45 mm. The moduels are compatible with our HighDynamic® linear motor actuator series and are equipped with an AC servo drive, a gearbox and generously dimensioned backlash-free bearings. This makes them especially suitable for screwing applications, as well as angular positioning of applications with large external inertia loads. Exact angular positioning, endless rotation and torque control over motor currents are the performance characteristics, as well as an extended operating temperature range of -30°C to +90°C ambient temperature.
The ideal automation product for fast screwing, swivelling handlings, mountings and test automation.

Applications:

  • screwing
  • capping
  • closing
  • screwing open
  • swiveling
  • turning
  • counter screwing
  • indexing
  • coiling
  • rolling
  • bending
  • aligning
  • checking torque
  • checking threads
  • capping check

ForTorque® Swivelling-Rotary Modules FT01-25

Characteristics:

  • swivelling-rotary modules with AC servo drives & low-backlash gearboxes
  • super-thin & light design
  • 25 mm Ø
  • high output force load & torque capacity
  • swivelling angle, rotating speed, angular acceleration & torque programmable
  • torque over motor current adjustable
  • peak torque 1,0 Nm
  • peak rotating speed 400 UPM
  • roatation angle accuracy < +/- 0,2°
  • endless rotation
  • suitable external inertia loads up to 10 kgcm²
  • one-cable technology
  • attractive price


Options:

  • clamping flange adaptor for HighDynamic® modules & guides
  • precision reference switch with cam
  • adaptor for afag, Schunk, Zimmer & GIMATIC grippers
  • fluid passages (in preparation)
  • stainless steel version (in preparation)


> more options

ForTorque® Swivelling-Rotary Modules FT01-35

Characteristics:

  • swivelling-rotary modules with AC servo drives & low-backlash gearboxes
  • super-thin & light design
  • 35 mm diameter
  • high output force load & torque capacity
  • swivelling angle, rotating speed, angular acceleration & torque programmable
  • torque over motor current adjustable
  • peak torque 2,0 Nm
  • peak rotating speed 360 UPM
  • roatation angle accuracy < +/- 0,2°
  • endless rotation
  • suitable external inertia loads up to 40 kgcm²
  • one-cable technology
  • attractive price


Options:

  • clamping flange adaptor for HighDynamic® modules & guides
  • precision reference switch with cam
  • adaptor for afag, Schunk, Zimmer & GIMATIC grippers
  • fluid passages (in preparation)
  • stainless steel version (in preparation)


> more options

ForTorque® Swivelling-Rotary Modules FT01-45

Characteristics:

  • swivelling-rotary modules with AC servo drives & low-backlash gearboxes
  • super-thin & light design
  • 25 mm diameter
  • high output force load & torque capacity
  • swivelling angle, rotating speed, angular acceleration & torque programmable
  • torque over motor current adjustable
  • peak torque 1,0 Nm
  • peak rotating speed 150 UPM
  • roatation angle accuracy < +/- 0,1°
  • endless rotation
  • suitable external inertia loads up to 200 kgcm²
  • one-cable technology
  • integrated precision reference switch


Options:

  • clamping flange adaptor for HighDynamic® modules & guides
  • precision reference switch with cam
  • adaptor for afag, Schunk, Zimmer & GIMATIC grippers
  • fluid passages (in preparation)
  • stainless steel version (in preparation)


> more options

ForTorque® Swivelling-Rotary Combinations

Clamping flanges permit custom made combinations of ForTorque® swivelling-rotary modules.


Characteristics:

  • ForTorque® FT01-45 & FT01-25 combined
  • adaptor AD16 for the combination of FT01-45 & FT01-25

Rotary-Stroke Modules - The Systemic Construction Kit

Through our kit modularity, we were able to combine linear and rotational motion into our ForTorque® products.


Characteristics:

  • HighDynamic® HM01 linear motor module
  • ForTorque® FT01 swivelling-rotary modules
  • adaptor AD12 for FT01 & HM01
  • MagSpring® for weight force compensation optional
  • adaptor AD03 & AD04 for MagSpring® mounting on HM01 optional


> LinTorque® page

ForTorque® Positioning Controller

For our ForTorque® swivelling-rotary modules, we preferably use controllers out of the LinMot® range.
Alternatively, controllers from FAULHABER and TECHNOSOFT and zub AG can be used!

Characteristics:

  • 24 VDC logic supply
  • 48 - 72 VDC power supply
  • 8 - 32 A output current
  • selection of positioning tasks with freely definable motion profiles over I/O’s or fieldbusses
  • oscillating motion
  • analog position target 0 - 10 V
  • pulse & direction inputs
  • master-booster or gantry mode
  • master-encoder synchronization
  • streaming mode
  • input for external high-resolution positioning sensor
  • variable homing modes
  • Safe Torque Off (STO)
  • fieldbusses EtherCAT, POWERLINK, PROFINET, SERCOS III, TCP/IP, Profibus-DP, CANOpen, DeviceNet
  • licence-free configuration tool LinMot-Talk
  • controller configuration according to motor and application data
