QuickLab® Linear Motor Modules & Guides

Overview

QuickLab® stands for a dynamic operating system which is typically used under IP20 conditions.

QuickLab® is a construction kit of miniaturized linear modules and guides with integrated linear drives.
With only a width of 18 mm resp. 22 mm it is designed für small applications with low payloads in single and two axis configurations. The standard values for continous operation are 3 m/s and 50 m/s². Position repeatability is in the range of +/- 0,05 mm.

Newest feature is compact direct cable outlet. Suitable cables are cain cables which can be manufactured ready to use up to a length of 30 m.

Typical applications are laboratory automation, mounting systems, test systems, optical and pharmazeutical applications.

Applications:

  • pushing
  • fitting
  • sorting
  • stacking
  • palletizing
  • pick & place
  • adjusting
  • feeding
  • testing

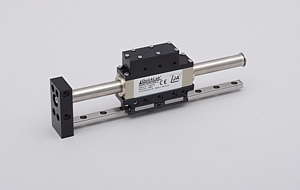

QuickLab® Linear Motor Modules QM02

Caracteristics:

  • two sizes
  • ideal for short stroke applications
  • very thin & torsion stiff construction
  • only 18 mm and 22 mm in width
  • QuickShaft® linear servo drives integrated
  • low mooving mass
  • stroke up to 160 mm
  • peak force up to 28 N
  • max. speed up to bis 3 m/s
  • max. acceleration up to 50 m/s²
  • positioning repeatability +/- 0,05 mm
  • long operational life
  • ready to use cables for cable chains
  • cable length up to 30 m

QuickLab® Linear Motor Guides QA02

Caracteristics:

  • ideal for longer stroke and P&P dual axis applications
  • very thin & torsion stiff construction
  • QuickShaft® linear servo drives integrated
  • low mooving mass
  • stroke up to 220 mm
  • peak force up to 28 N
  • max. speed up to 3 m/s
  • max. acceleration up to 50 m/s²
  • positioning repeatability +/- 0,05 mm
  • X-Z & X-Ycombinations easy to buld
  • long operational life
  • one-cable technology
  • ready to use cables for cable chains
  • cable length up to 30 m

Faulhaber® Positioning Controller

In very simple and low dynamic applications we preferably use controllers out of the Faulhaber® range in combination with our QuickLab® linear motor systems.

Characteristics:

  • 24 VDC logic supply
  • 24 VDC or 48 VDC power supply
  • 2 - 5 A output current
  • analog position target 0 - 10 V
  • fieldbusses EtherCAT, CANOpen, RS232
  • licence-free configuration tool MotionManager
  • controller configuration according to motor and application data

LinMot® Positioning Controller

In high dynamic applications and when fieldbusses are required we preferably use controllers out of the LinMot® range in combination with our QuickLab® linear motor systems.

Characteristics:

  • 24 VDC logic supply
  • 48 - 72 VDC power supply
  • 8 - 32 A output current
  • selection of positioning tasks with freely definable motion profiles over I/O’s or fieldbusses
  • oscillating motion
  • analog position target 0 - 10 V
  • pulse & direction inputs
  • master-booster or gantry mode
  • master-encoder synchronization
  • streaming mode
  • input for external high-resolution positioning sensor
  • variable homing modes
  • Safe Torque Off (STO)
  • fieldbusses EtherCAT, POWERLINK, PROFINET, SERCOS III, TCP/IP, Profibus-DP, CANOpen, DeviceNet
  • licence-free configuration tool LinMot-Talk
  • controller configuration according to motor and application data
